TP7030 Polyester Resin

TP7030 Polyester Resin

Polyester Resin

Properties

TP7030 is a Carboxyl Saturated Polyester Resin which is cured with Epoxy Resin (70:30) to produce the Hybrid Powder Coating providing excellent flow-abilities, mechanical properties, decorative effects, and very good yellowing resistance.



Technical Parameters

Description

Testing Standard

Specification

Appearance



Light White Granulate

Color (50% DMF solution)

(ASTM D 1544)

≤4

Acid Value (mg KOH/g)

(ASTM D 1613)

25-35

Softening Point (ºC)

(Ball and Ring)

95-115

Glass Temperature (ºC)

(ASTM D 3418)

50 (Approx.)

ICI Viscosity (175ºC)(Pa· S)

(ASTM D 4287)

0.45-0.6

Note: Some specifications can be adjusted by your requirement.



Recommended Formulation

Ingredients

WT%

TP7030

42.0

Epoxy Resin

18.0

Titanium Dioxide

30.0

Flow Agent TP88

5.0

Benzoin

0.5

Curing Condition: 180ºC for 15min. (Metal Temperature)



Package & Storage & Handling

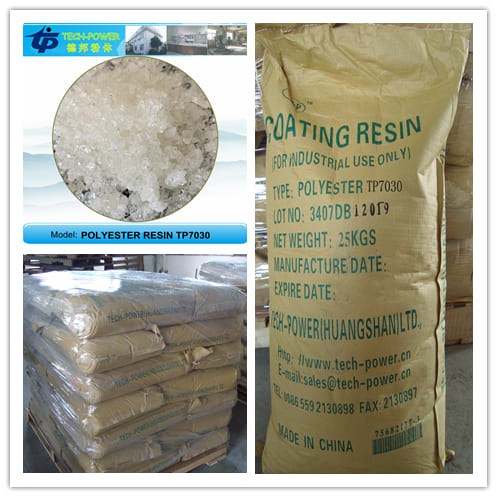

1. With white polyethylene bags. 25 kg each net. 35 bags each pallet and fixed with plastic film.

2. Away from heat sources, avoid direct sunshine and keeping in each pallet separately.

3. Validity will be 1 years under normal temperature.

Toxicity safety measures

This resin is non-flammable and no toxicity is known. Follow usual hygiene practice when handling resin. However take into account the potential risk resulting from additives such as catalysts, hardeners, pigments, etc.

FDA Statement

When properly formulated and cured for food contact application, TP7030 will comply with the US Food, Drug and Cosmetic Act as amended under food additive Regulation 21 CFR 175.300.This use is subject to good manufacturing practices and any limitations which are part of the regulations. The regulations should be consulted for complete details.
